Speakers

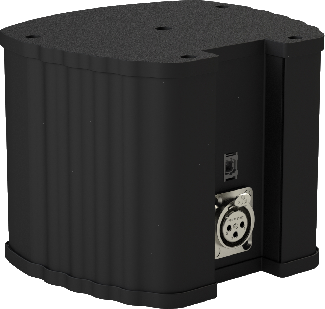

BS-X10

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 1 × 4″ impregnated (fully neodymium)
  • Operational mode: active, 1 Amplifier, Class-D
  • Max. SPL (1m): 110 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 120°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

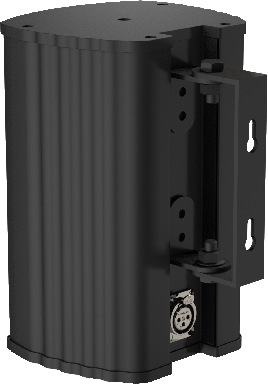

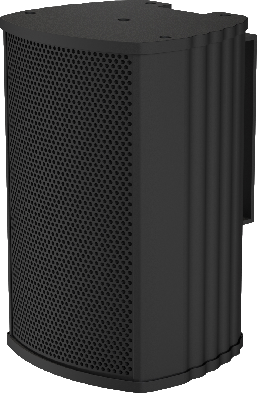

BS-X20

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 6″ impregnated (fully neodymium)
  • Operational mode: active, Amplifier, Class-D
  • Max. SPL (1m): 116 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 115°
  • Vertical beamwidth, digitally controlled: 0° to +80° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

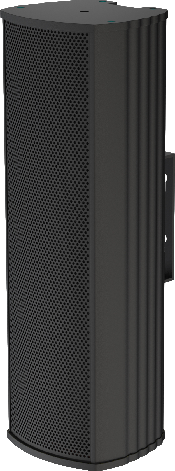

BS-X40

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 2 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 2 Amplifiers, Class-D
  • Max. SPL (1m): 117 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 115°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

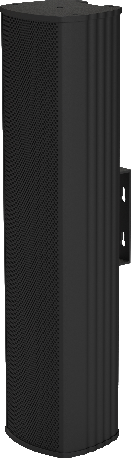

BS-X55

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 2 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 3 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 119 dB
  • Frequency range: 60 Hz – 17 kHz
  • Beam dispersion angle, horizontal: 105°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X80

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 3 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 5 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 122 dB
  • Frequency range: 60 Hz – 17 kHz
  • Beam dispersion angle, horizontal: 105°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X100

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 4 × 4″ impregnated (fully neodymium)
  • Operational mode: active, 5 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 120 dB
  • Frequency range: 60 Hz – 19 kHz
  • Beam dispersion angle, horizontal: 100°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X120

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 5 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 7 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 128 dB
  • Frequency range: 60 Hz – 17 kHz
  • Beam dispersion angle, horizontal: 105°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X140

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 8 × 4″ impregnated (fully neodymium)
  • Operational mode: active, 10 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 125 dB
  • Frequency range: 60 Hz – 18 kHz
  • Beam dispersion angle, horizontal: 100°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X180

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 8 × 4″ impregnated (fully neodymium)
  • Operational mode: active, 14 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 125 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 100°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from speaker’s bottom to top)
Read Catalog

BS-X200

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 8 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 12 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 132 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 110°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams moveable between 0 – 100% (from
    speaker bottom to top)
Read Catalog

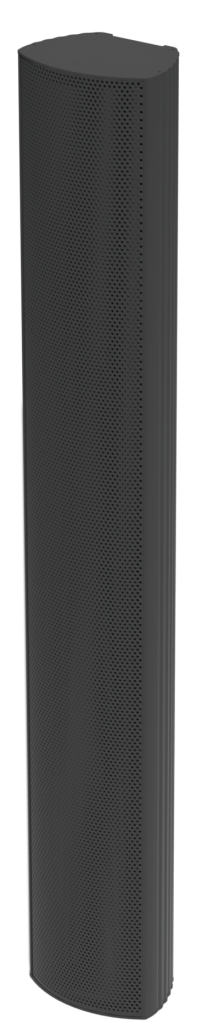

BS-X300

Technical Data

  • Acoustic design: electronically steerable line source speaker
  • Components: 8 × 6″ impregnated (fully neodymium)
  • Operational mode: active, 12 × DSP Amplifiers, Class-D
  • Max. SPL (1m): 132 dB
  • Frequency range: 60 Hz – 16 kHz
  • Beam dispersion angle, horizontal: 110°
  • Vertical beamwidth, digitally controlled: 0° to +90° in 0.1° increments
  • Vertical inclination angle, digitally controlled: -40° to +40° in 0.1° increments
  • Acoustic center: both beams are moveable between 0 – 100% (from
    speaker bottom to top)
Read Catalog
